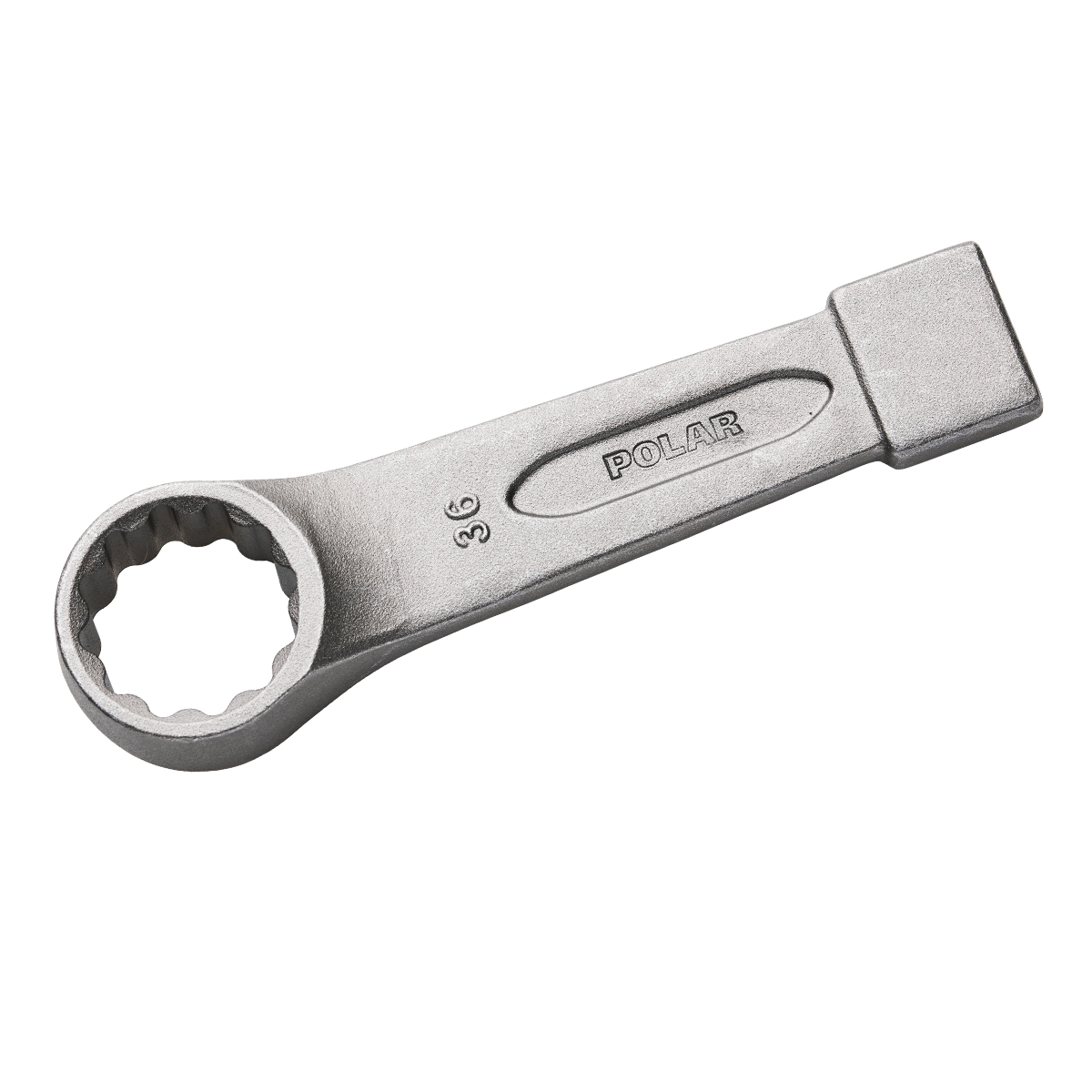

Slogging ring wrench, DS type
DIN 7444.
Surface: Oiled.
Material: Chrome-vanadium steel.
Surface: Oiled.
Material: Chrome-vanadium steel.

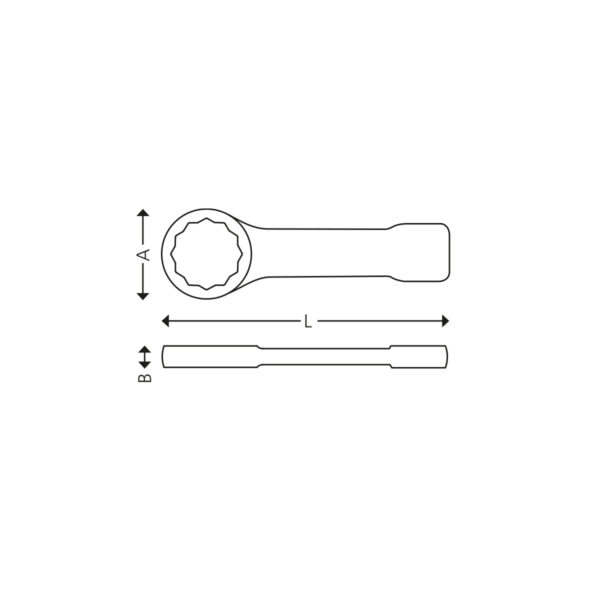

| Size mm | Item no. | A mm | B mm | L mm | Weight (g) |
|---|---|---|---|---|---|
| 32 | 2812-0032 | 47 | 24 | 195 | 570 |
| 36 | 2812-0036 | 52 | 26 | 195 | 640 |
| 41 | 2812-0041 | 59 | 29 | 200 | 880 |
| 46 | 2812-0046 | 65 | 32 | 250 | 1230 |
| 50 | 2812-0050 | 70 | 35 | 280 | 1610 |
| 55 | 2812-0055 | 76 | 38 | 300 | 2080 |
| 60 | 2812-0060 | 82 | 42 | 300 | 2320 |
| 65 | 2812-0065 | 90 | 45 | 325 | 3210 |
| 70 | 2812-0070 | 97 | 48 | 355 | 3680 |
| 75 | 2812-0075 | 103 | 51 | 360 | 4420 |
| 80 | 2812-0080 | 110 | 57 | 440 | 5810 |
| 85 | 2812-0085 | 117 | 57 | 440 | 6030 |
| 90 | 2812-0090 | 124 | 60 | 453 | 6860 |
| 95 | 2812-0095 | 152 | 63 | 482 | 9980 |
| 100 | 2812-0100 | 152 | 63 | 482 | 13350 |
| 105 | 2812-0105 | 168 | 62 | 495 | 13350 |
| 110 | 2812-0110 | 168 | 62 | 495 | 12600 |
| 115 | 2812-0115 | 177 | 70 | 533 | 16720 |
| 120 | 2812-0120 | 177 | 70 | 533 | 14280 |
