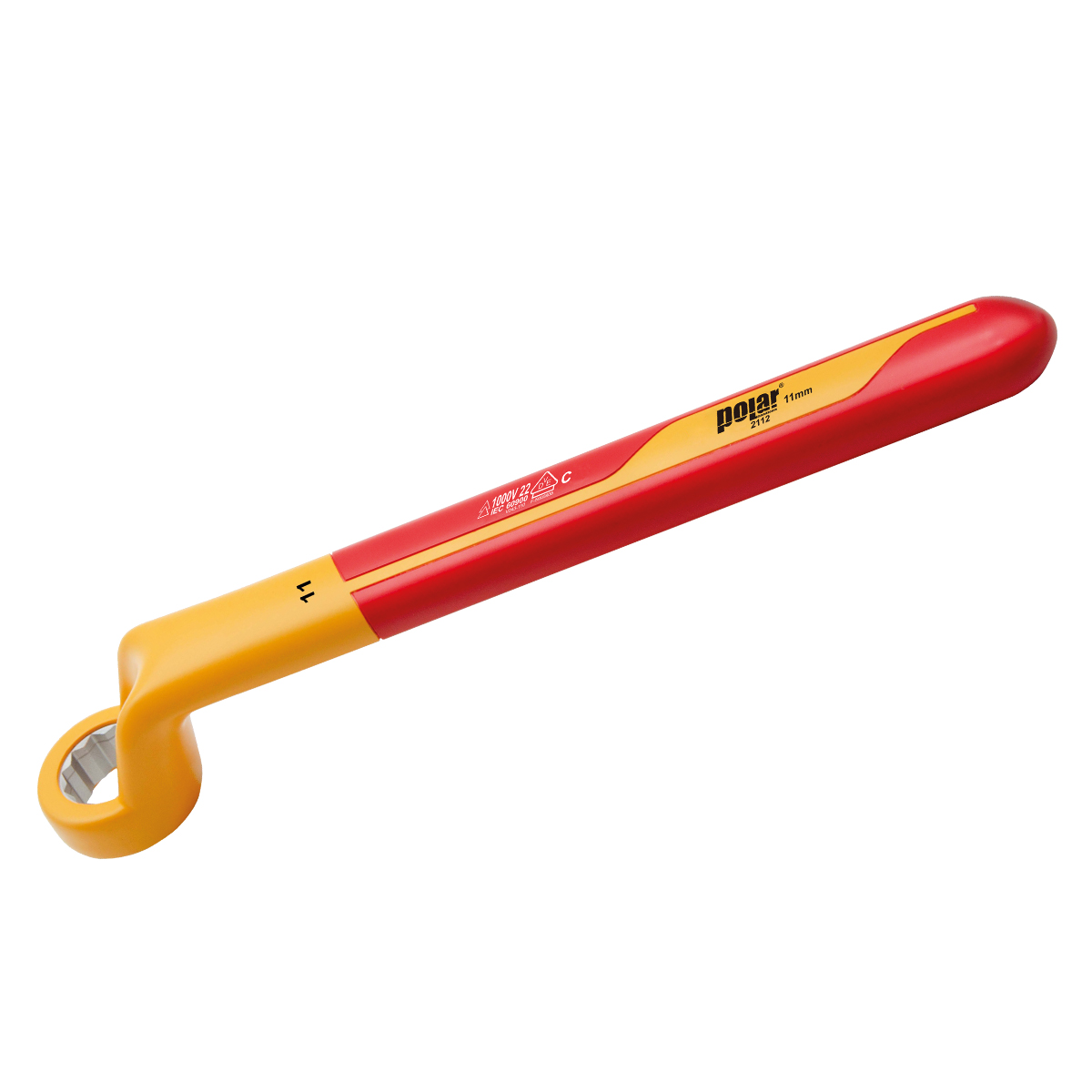

Insulated offset ring wrench
ISO 10104, DIN 838.
Every tool is individually tested to protect up to 1000V AC.
VDE approved.
12-Point ring angled at 75°.
Surface: Chrome plated finish.
Material: Chrome-vanadium steel.
Every tool is individually tested to protect up to 1000V AC.
VDE approved.
12-Point ring angled at 75°.
Surface: Chrome plated finish.
Material: Chrome-vanadium steel.

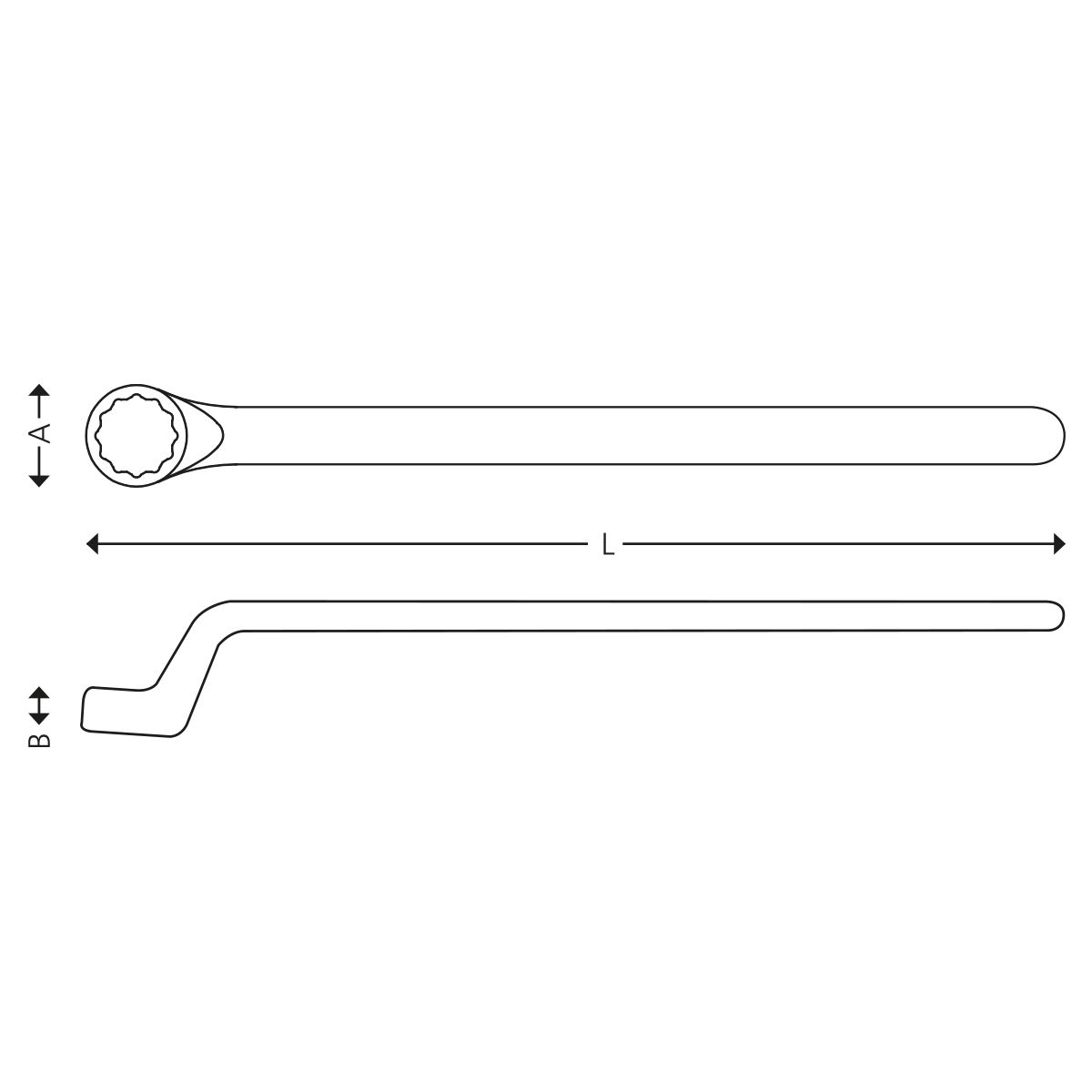

| Size mm | Item no. | A mm | B mm | L mm | Weight (g) |
|---|---|---|---|---|---|
| 8 | 2112-8008 | 20,0 | 8,6 | 125 | 60 |
| 10 | 2112-8010 | 22,0 | 10,6 | 145 | 78 |
| 11 | 2112-8011 | 23,7 | 10,8 | 155 | 94 |
| 12 | 2112-8012 | 23,7 | 10,8 | 165 | 93 |
| 13 | 2112-8013 | 26,7 | 11,8 | 175 | 127 |
| 14 | 2112-8014 | 28,0 | 12,4 | 185 | 147 |
| 15 | 2112-8015 | 31,3 | 13,5 | 195 | 144 |
| 17 | 2112-8017 | 34,3 | 14,8 | 215 | 173 |
| 19 | 2112-8019 | 38,5 | 15,9 | 235 | 218 |
| 22 | 2112-8022 | 38,5 | 15,9 | 265 | 279 |
| 24 | 2112-8024 | 43,3 | 16,8 | 285 | 351 |
