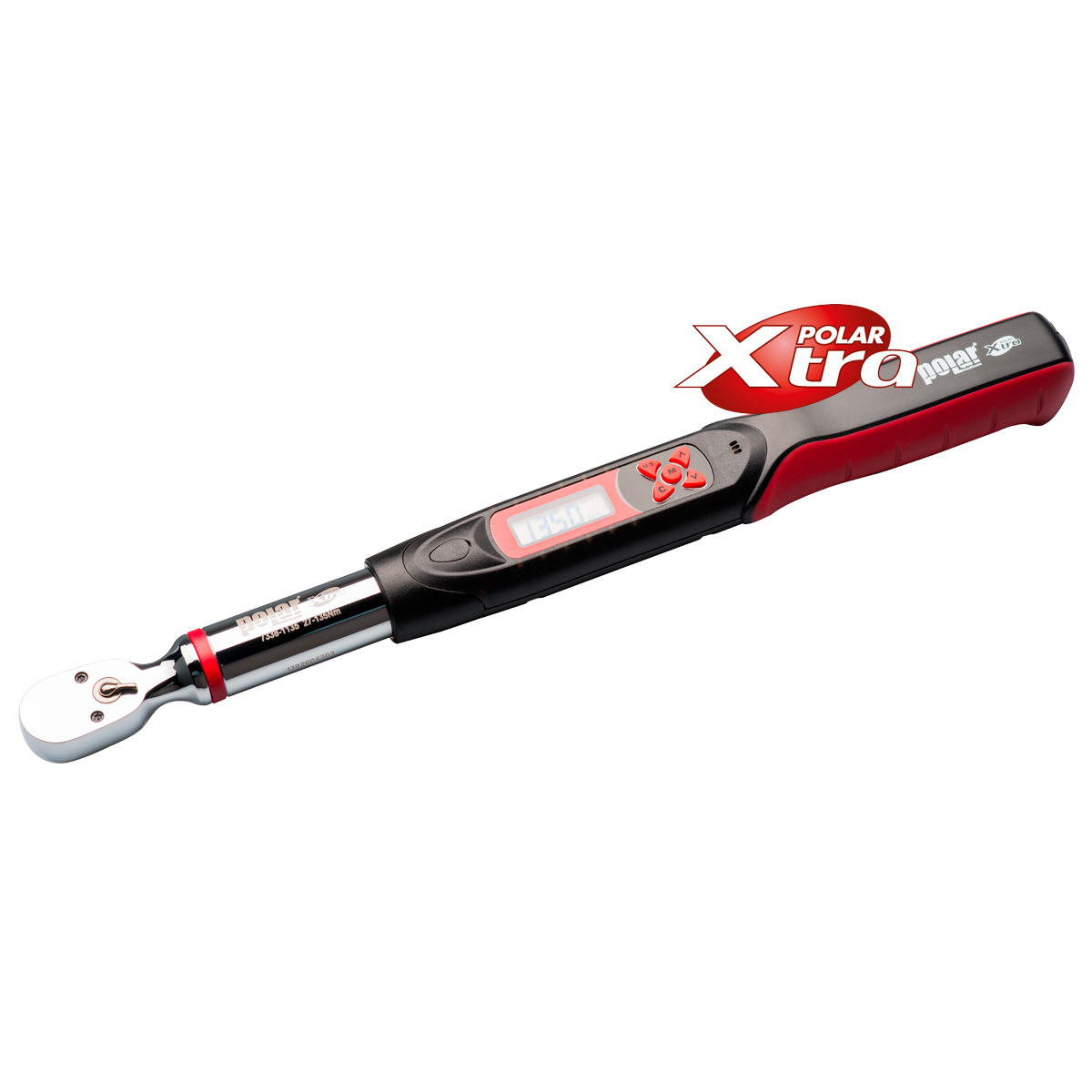

Digital torque wrenches
ISO 6789, DIN 3122, EN 26789
Digital torque wrench with reversible 36 teeth ratchet, for both clockwise and counterclockwise operation.
Accuracy: ± 2% (CW) / ± 3% (CCW) from 20% to 100% of full scale
Two operation modes: Track (shows actual torque applied) and Peak (shows maximum reached torque).
4 Torque units: Nm, kg-cm, in-lb and ft-lb.
Acoustic and green/red LED signal at preset torque value.
Memory function with 9 preset torque values and 50 measurements.
Battery life (continuous operation): 110 hrs.
Operating temperature: -10°C ~ 60°C.
Storage temperature: -20°C ~ 70°C.
Comfortable, non-slip grip handle.
Humidity: Up to 90% non-condensing.
Supplied with test certificate, batteries and storage case.
Digital torque wrench with reversible 36 teeth ratchet, for both clockwise and counterclockwise operation.
Accuracy: ± 2% (CW) / ± 3% (CCW) from 20% to 100% of full scale
Two operation modes: Track (shows actual torque applied) and Peak (shows maximum reached torque).
4 Torque units: Nm, kg-cm, in-lb and ft-lb.
Acoustic and green/red LED signal at preset torque value.
Memory function with 9 preset torque values and 50 measurements.
Battery life (continuous operation): 110 hrs.
Operating temperature: -10°C ~ 60°C.
Storage temperature: -20°C ~ 70°C.
Comfortable, non-slip grip handle.
Humidity: Up to 90% non-condensing.
Supplied with test certificate, batteries and storage case.
| Capacity Nm | Item no. | Increments Nm | Ext. square | L mm | Weight (g) |
|---|---|---|---|---|---|
| 6-30 | 7314-1030 | 0,01 | 1/4“ | 390 | 727 |
| 27-135 | 7338-1135 | 0,1 | 3/8" | 415 | 898 |
| 40-200 | 7312-1200 | 0,1 | 1/2” | 530 | 1333 |
| 68-340 | 7312-1340 | 0,1 | 1/2” | 650 | 1508 |
