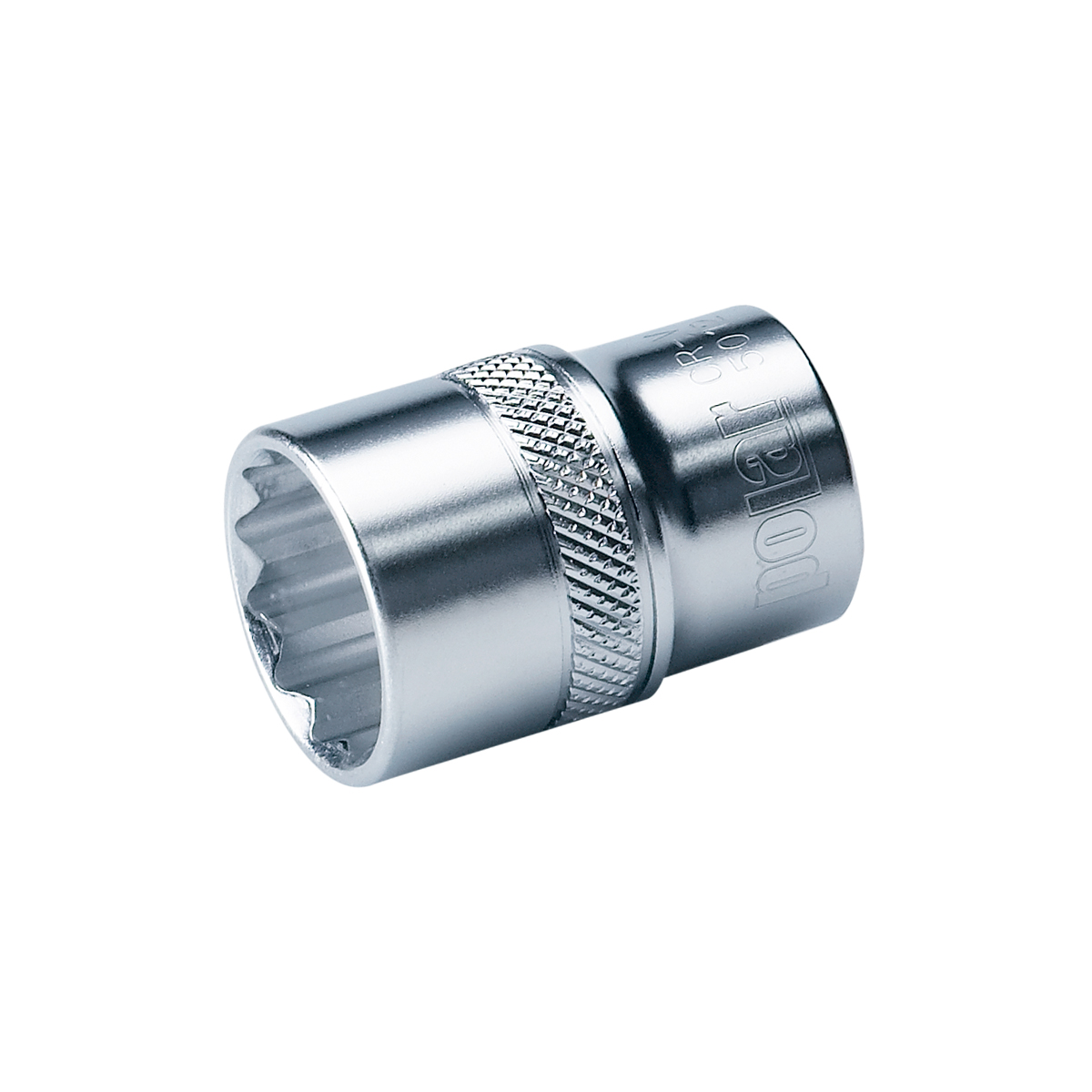

3/8” 12-point metric sockets
ISO 2725-1, DIN 3124
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.

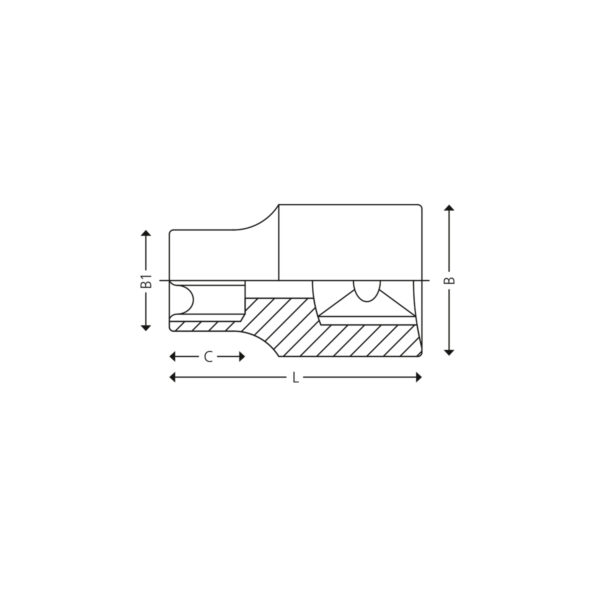

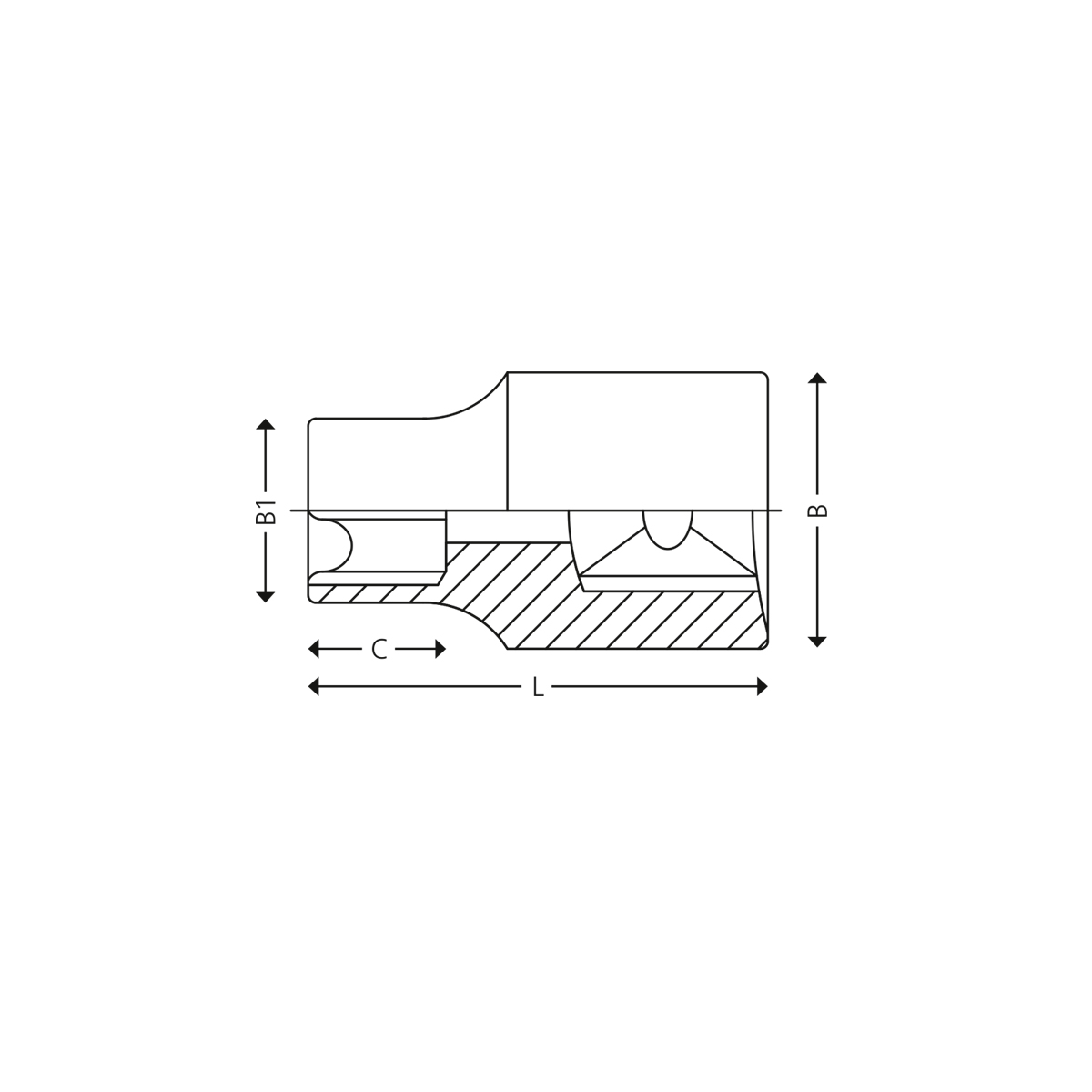

| Size mm | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 6 | 5038-2006 | 17,0 | 10,2 | 8 | 28 | 22 |
| 7 | 5038-2007 | 17,0 | 10,6 | 8 | 28 | 22 |
| 8 | 5038-2008 | 17,0 | 11,8 | 8 | 28 | 24 |
| 9 | 5038-2009 | 17,0 | 13,2 | 8 | 28 | 24 |
| 10 | 5038-2010 | 17,0 | 14,5 | 8 | 28 | 25 |
| 11 | 5038-2011 | 17,0 | 15,7 | 8 | 28 | 24 |
| 12 | 5038-2012 | 16,0 | 17,0 | 12 | 28 | 23 |
| 13 | 5038-2013 | 16,5 | 18,0 | 12 | 28 | 27 |
| 14 | 5038-2014 | 17,0 | 19,6 | 12 | 28 | 34 |
| 15 | 5038-2015 | 18,0 | 20,9 | 12 | 28 | 41 |
| 16 | 5038-2016 | 19,0 | 22,0 | 12 | 30 | 43 |
| 17 | 5038-2017 | 20,0 | 23,4 | 12 | 30 | 54 |
| 18 | 5038-2018 | 21,0 | 24,6 | 12 | 30 | 60 |
| 19 | 5038-2019 | 23,0 | 26,0 | 14 | 30 | 68 |
| 20 | 5038-2020 | 24,0 | 27,1 | 14 | 32 | 81 |
| 21 | 5038-2021 | 25,0 | 28,0 | 14 | 32 | 83 |
| 22 | 5038-2022 | 26,0 | 29,6 | 14 | 32 | 99 |
