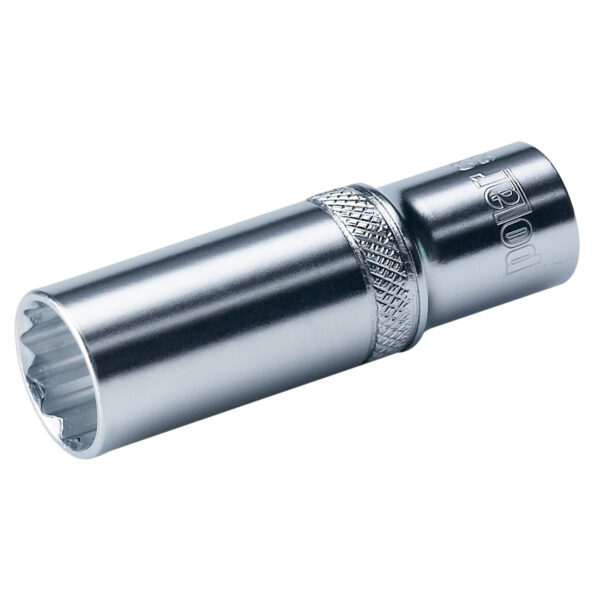

3/8” 12-point long inch sockets
ANSI B107.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
| Size ” | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 1/4” | 5038-5108 | 17,0 | 9,9 | 6 | 63 | 50 |
| 5/16” | 5038-5110 | 17,0 | 11,8 | 9 | 63 | 51 |
| 11/32 | 5038-5111 | 17,0 | 13,2 | 9 | 63 | 53 |
| 3/8” | 5038-5112 | 17,0 | 14,5 | 9 | 63 | 56 |
| 13/32 | 5038-5113 | 17,0 | 14,5 | 9 | 63 | 59 |
| 7/16 | 5038-5114 | 17,0 | 15,7 | 12 | 63 | 62 |
| 15/32 | 5038-5115 | 16,0 | 17,0 | 12 | 63 | 70 |
| 1/2 | 5038-5116 | 16,5 | 18,0 | 12 | 63 | 76 |
| 9/16 | 5038-5118 | 17,0 | 19,6 | 15 | 63 | 86 |
| 19/32 | 5038-5119 | 18,0 | 21,8 | 15 | 63 | 111 |
| 5/8 | 5038-5120 | 19,0 | 22,0 | 15 | 63 | 102 |
| 21/32 | 5038-5121 | 20,0 | 23,4 | 15 | 63 | 112 |
| 11/16 | 5038-5122 | 23,0 | 23,4 | 15 | 63 | 122 |
| 3/4 | 5038-5124 | 24,0 | 26,0 | 18 | 63 | 142 |
| 25/32 | 5038-5125 | 25,0 | 27,1 | 18 | 63 | 162 |
| 13/16 | 5038-5126 | 26,0 | 28,0 | 18 | 63 | 160 |
| 7/8 | 5038-5128 | 28,0 | 29,6 | 21 | 63 | 195 |
