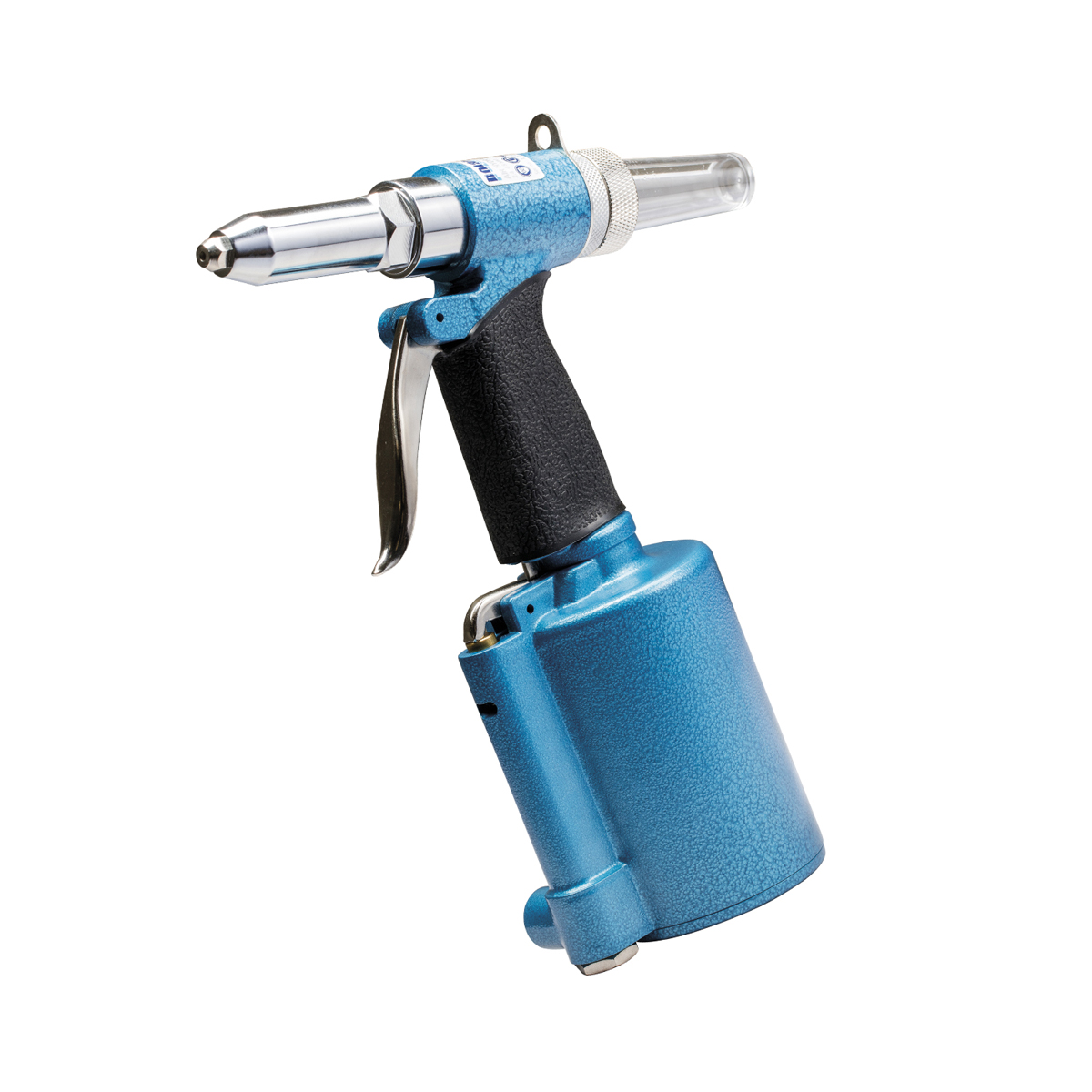

3/16” Air hydraulic riveter

Lightweight cast aluminum body.
Machined chrome plated steel nosepiece.
Air relief valve prevents overloading.
Safety cap collects spent rivet pins.
Nose pieces in 2.4 - 3.2 - 4.0 and 4.8 mm
Rivet material: Aluminium, steel and stainless steel.

Technical data:
Tool stroke: 14 mm
Traction power: 1219 kg
Air inlet: 1/4”
Rivet capacity: 2.4 - 4.8 mm (3/32”-3/16”)
Hose size: 1/2” (13 mm)
Sound pressure: 77,8 db(A)
Sound power: 88,8 db (A)
Vibration level: 1,2 m/s2
Recommended air pressure: 6,2 bar.
