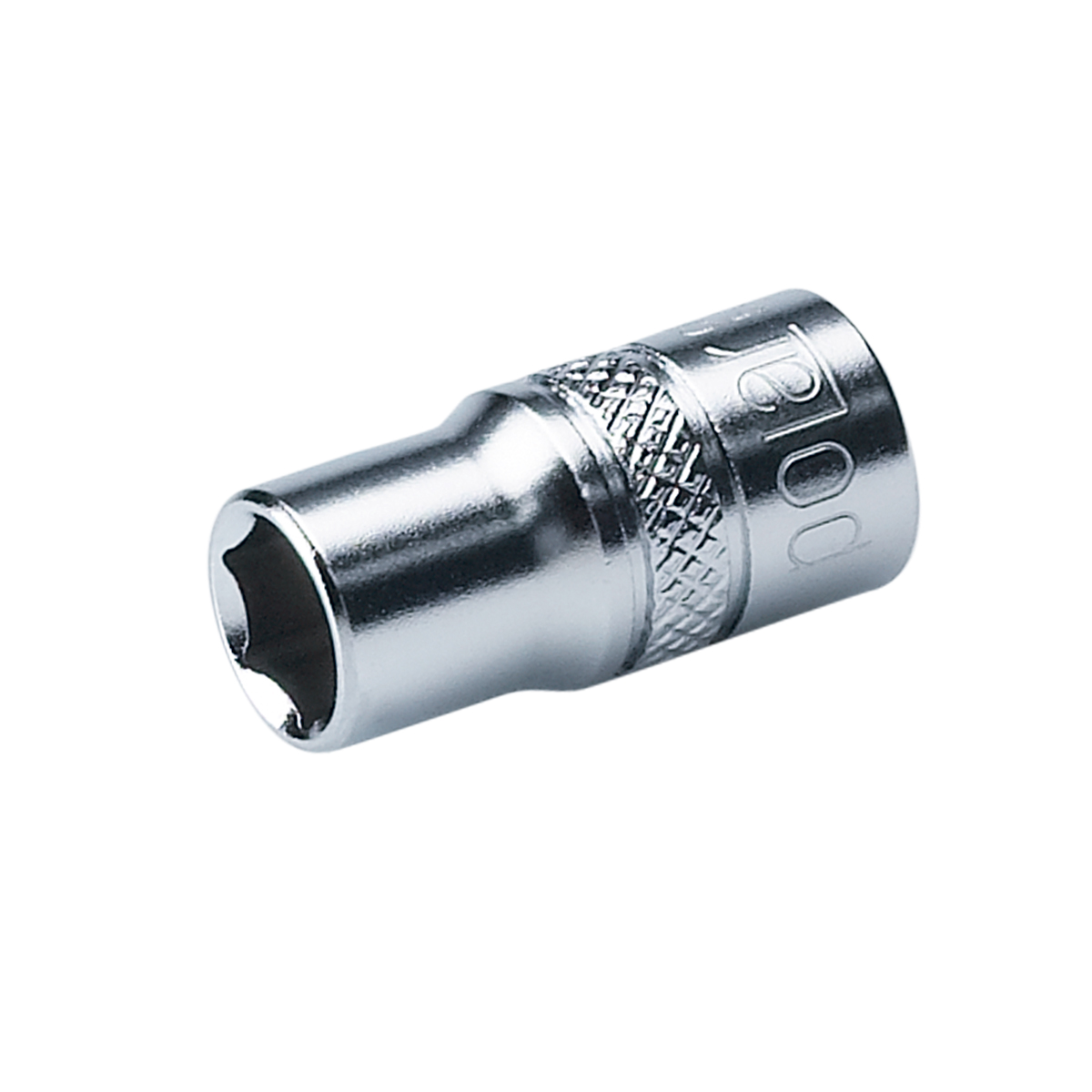

1/4” 6-Point inch sockets
ANSI B107.1
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.

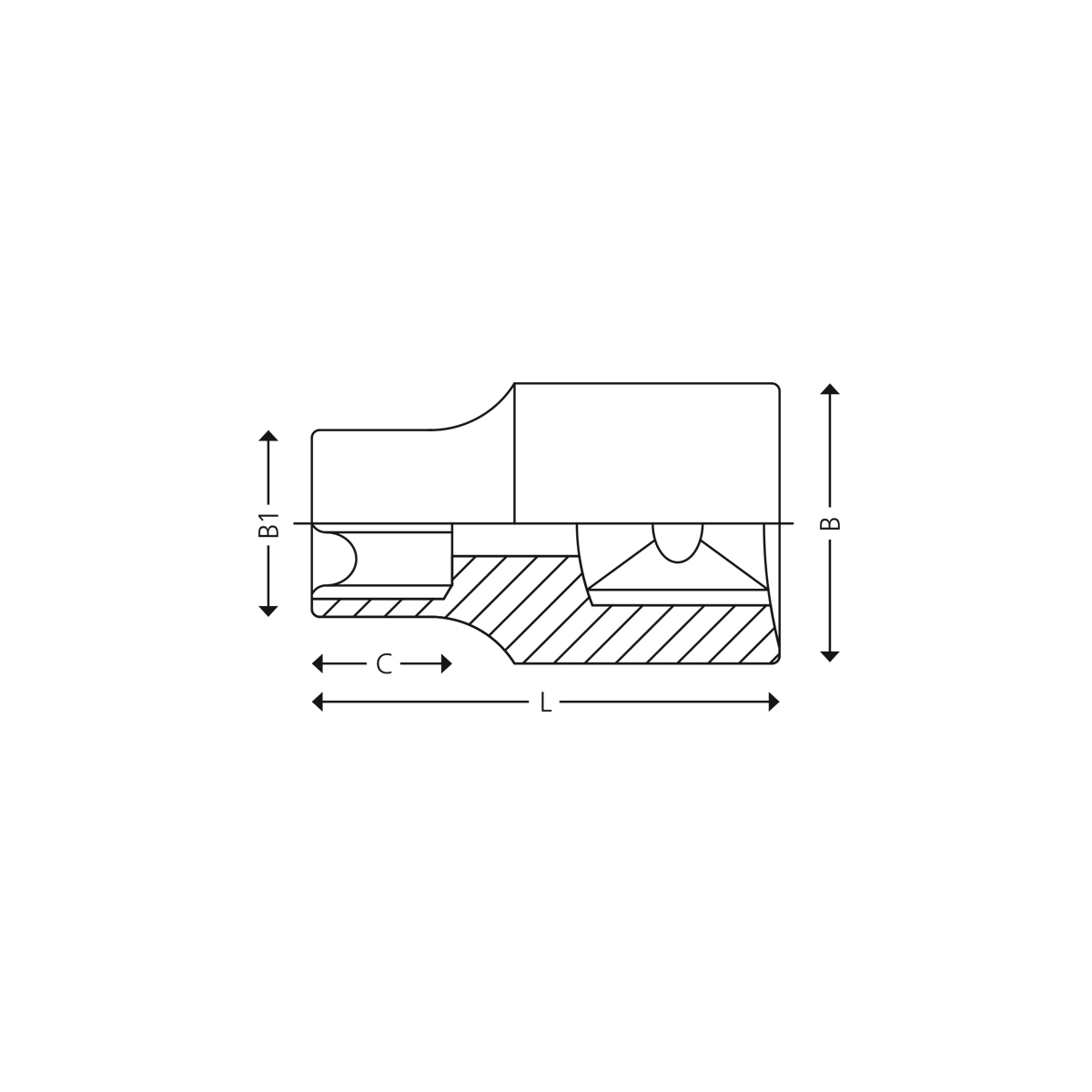

| Size ” | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 1/8” | 5014-1004 | 11,9 | 5,8 | 3 | 25 | 9 |
| 5/32” | 5014-1005 | 11,9 | 6,8 | 5 | 25 | 10 |
| 3/16” | 5014-1006 | 11,9 | 8,0 | 5 | 25 | 10 |
| 7/32” | 5014-1007 | 11,9 | 8,8 | 5 | 25 | 11 |
| 1/4” | 5014-1008 | 11,9 | 9,3 | 5 | 25 | 11 |
| 9/32 | 5014-1009 | 11,9 | 10,5 | 5 | 25 | 12 |
| 5/16” | 5014-1010 | 11,9 | 11,9 | 5 | 25 | 12 |
| 11/32 | 5014-1011 | 13,0 | 13,0 | 5 | 25 | 19 |
| 3/8” | 5014-1012 | 14,0 | 14,0 | 8 | 25 | 22 |
| 13/32 | 5014-1013 | 14,0 | 14,0 | 8 | 25 | 24 |
| 7/16 | 5014-1014 | 16,0 | 16,0 | 8 | 25 | 24 |
| 15/32 | 5014-1015 | 17,0 | 17,0 | 8 | 25 | 27 |
| 1/2 | 5014-1016 | 17,8 | 17,8 | 10 | 25 | 31 |
| 9/16 | 5014-1018 | 19,6 | 19,6 | 10 | 25 | 38 |
