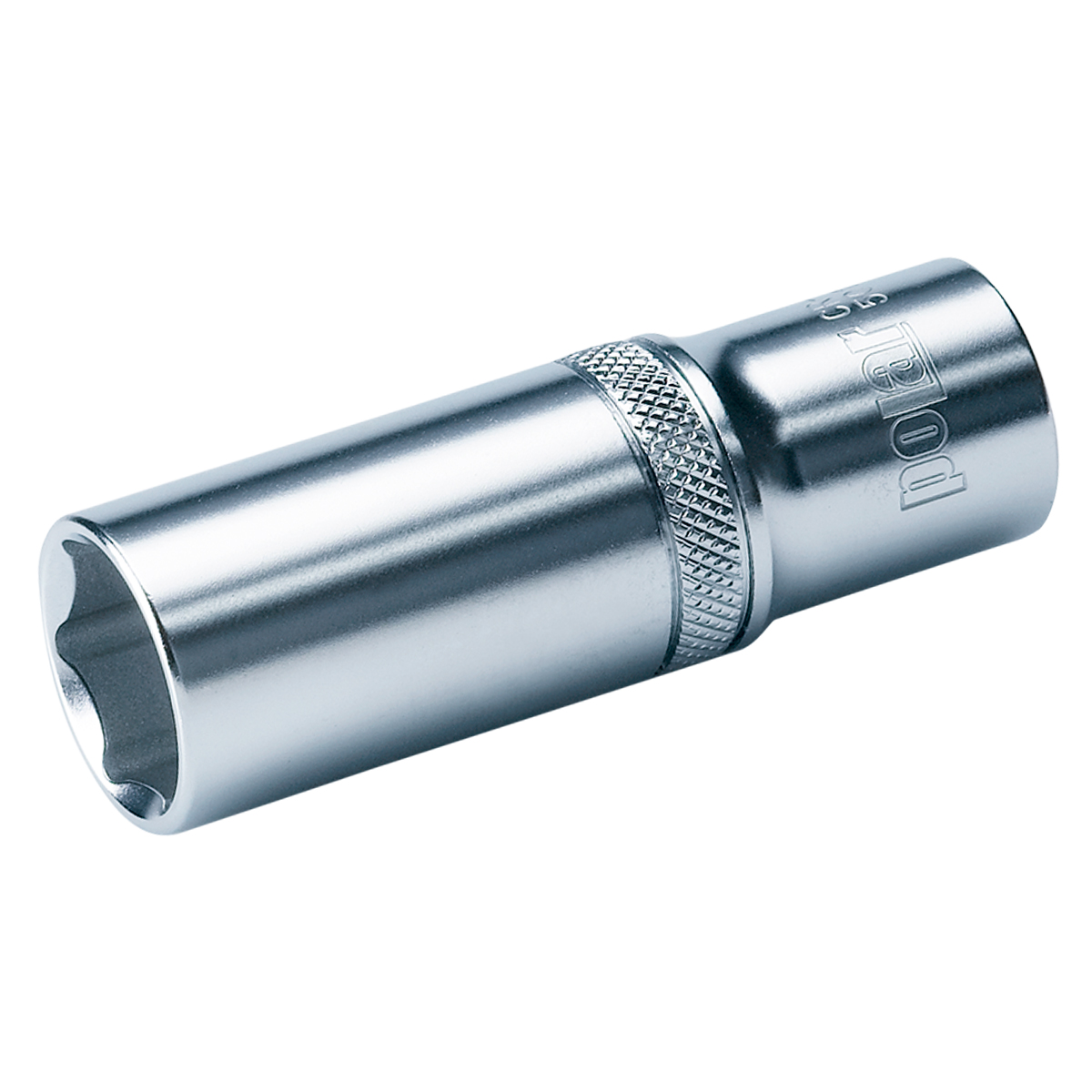

1/2” 6-point long inch sockets
ANSI B107.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
| Size ” | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 3/8” | 5012-4112 | 22,0 | 15,0 | 12 | 77 | 96 |
| 13/32 | 5012-4113 | 22,0 | 15,7 | 12 | 77 | 98 |
| 7/16 | 5012-4114 | 22,0 | 16,3 | 12 | 77 | 101 |
| 15/32 | 5012-4115 | 22,0 | 17,6 | 12 | 77 | 105 |
| 1/2 | 5012-4116 | 22,0 | 18,8 | 12 | 77 | 109 |
| 9/16 | 5012-4118 | 22,0 | 20,4 | 15 | 77 | 112 |
| 19/32 | 5012-4119 | 20,7 | 21,6 | 15 | 77 | 128 |
| 5/8 | 5012-4120 | 21,5 | 22,9 | 15 | 77 | 112 |
| 21/32 | 5012-4121 | 22,0 | 24,0 | 15 | 77 | 123 |
| 11/16 | 5012-4122 | 22,0 | 24,0 | 15 | 77 | 133 |
| 3/4 | 5012-4124 | 23,0 | 26,0 | 15 | 77 | 157 |
| 25/32 | 5012-4125 | 24,0 | 27,9 | 18 | 77 | 210 |
| 13/16 | 5012-4126 | 25,0 | 28,0 | 18 | 77 | 222 |
| 7/8 | 5012-4128 | 26,0 | 30,0 | 18 | 77 | 227 |
| 15/16 | 5012-4130 | 28,0 | 32,0 | 21 | 77 | 255 |
| 1 | 5012-4132 | 30,0 | 34,0 | 24 | 77 | 315 |
| 1 1/6 | 5012-4134 | 30,0 | 36,0 | 24 | 77 | 352 |
| 1 1/8 | 5012-4136 | 32,0 | 38,0 | 27 | 77 | 331 |
| 1 3/16 | 5012-4138 | 34,0 | 40,0 | 30 | 77 | 383 |
| 1 1/4 | 5012-4140 | 36,0 | 42,0 | 33 | 77 | 420 |
