1/2” 12-point metric sockets
ISO 2725-1, DIN 3124
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.

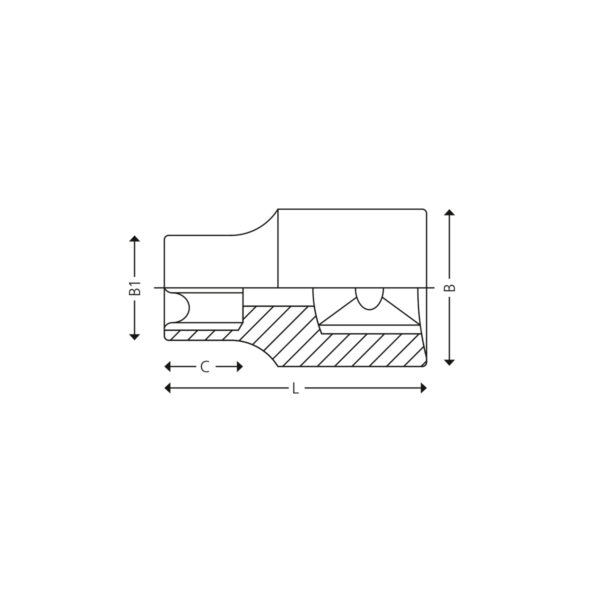

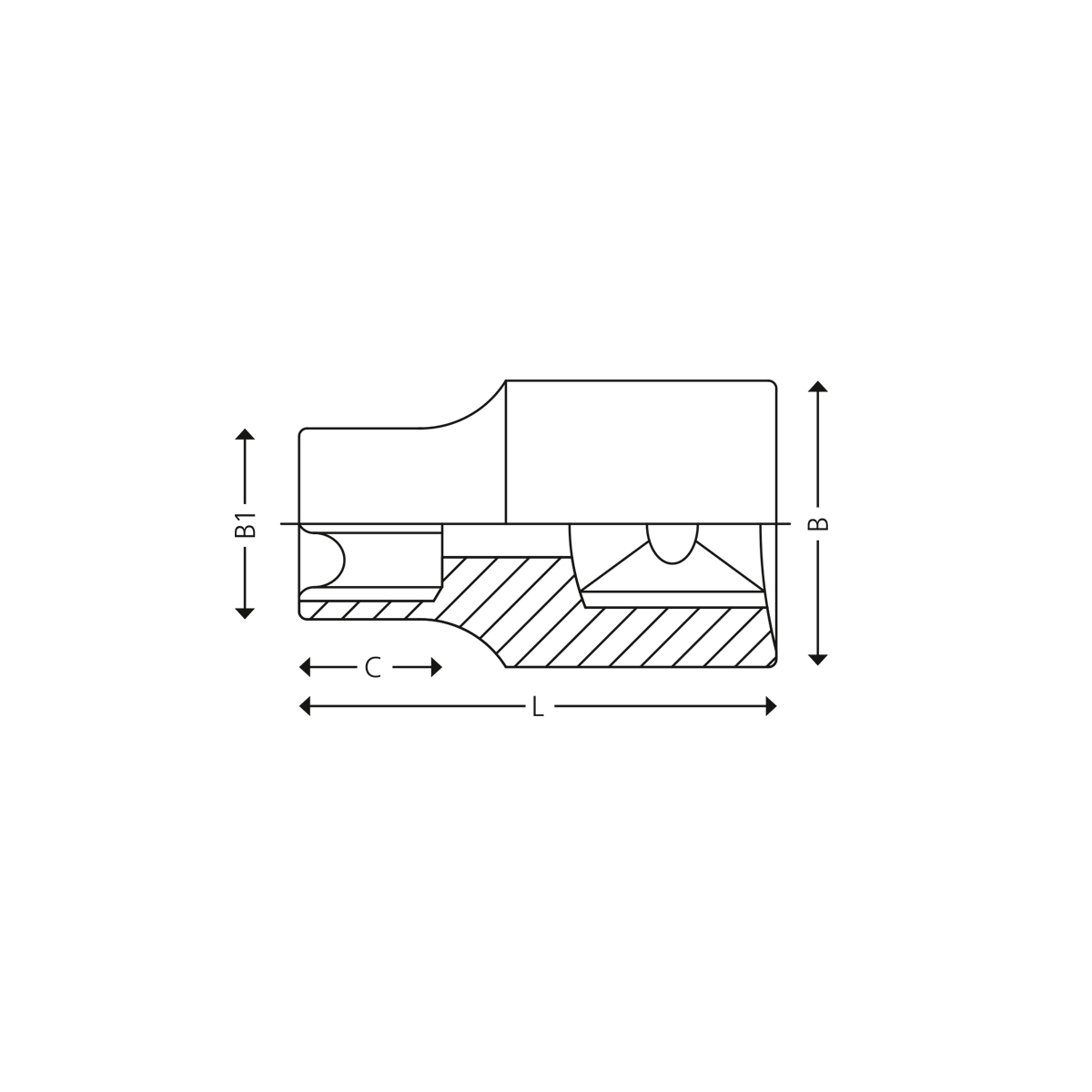

| Size mm | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 8 | 5012-2008 | 21,8 | 13,2 | 12 | 38 | 47 |
| 9 | 5012-2009 | 21,8 | 13,9 | 12 | 38 | 47 |
| 10 | 5012-2010 | 21,8 | 15,0 | 12 | 38 | 49 |
| 11 | 5012-2011 | 21,8 | 16,3 | 12 | 38 | 50 |
| 12 | 5012-2012 | 21,8 | 17,6 | 12 | 38 | 50 |
| 13 | 5012-2013 | 21,8 | 18,8 | 12 | 38 | 51 |
| 14 | 5012-2014 | 21,8 | 20,4 | 12 | 38 | 53 |
| 15 | 5012-2015 | 20,7 | 21,6 | 12 | 38 | 54 |
| 16 | 5012-2016 | 21,5 | 22,9 | 12 | 38 | 61 |
| 17 | 5012-2017 | 22,0 | 24,0 | 12 | 38 | 68 |
| 18 | 5012-2018 | 23,0 | 25,4 | 12 | 38 | 85 |
| 19 | 5012-2019 | 23,0 | 26,0 | 14 | 38 | 73 |
| 20 | 5012-2020 | 24,0 | 27,9 | 14 | 38 | 86 |
| 21 | 5012-2021 | 25,0 | 28,0 | 14 | 38 | 82 |
| 22 | 5012-2022 | 26,0 | 30,0 | 14 | 40 | 106 |
| 23 | 5012-2023 | 27,0 | 31,6 | 14 | 40 | 125 |
| 24 | 5012-2024 | 28,0 | 32,0 | 16 | 42 | 121 |
| 25 | 5012-2025 | 30,0 | 34,0 | 16 | 42 | 150 |
| 26 | 5012-2026 | 30,0 | 35,4 | 16 | 42 | 170 |
| 27 | 5012-2027 | 30,0 | 36,0 | 18 | 43 | 168 |
| 28 | 5012-2028 | 32,0 | 37,9 | 18 | 43 | 193 |
| 29 | 5012-2029 | 32,0 | 38,0 | 20 | 43 | 205 |
| 30 | 5012-2030 | 34,0 | 40,0 | 22 | 46 | 225 |
| 32 | 5012-2032 | 36,0 | 42,0 | 22 | 46 | 255 |
| 34 | 5012-2034 | 37,0 | 43,9 | 22 | 46 | 255 |
| 36 | 5012-2036 | 37,8 | 47,9 | 22 | 46 | 274 |
