1/2” 12-point long metric sockets
ISO 2725-1, DIN 3124
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.

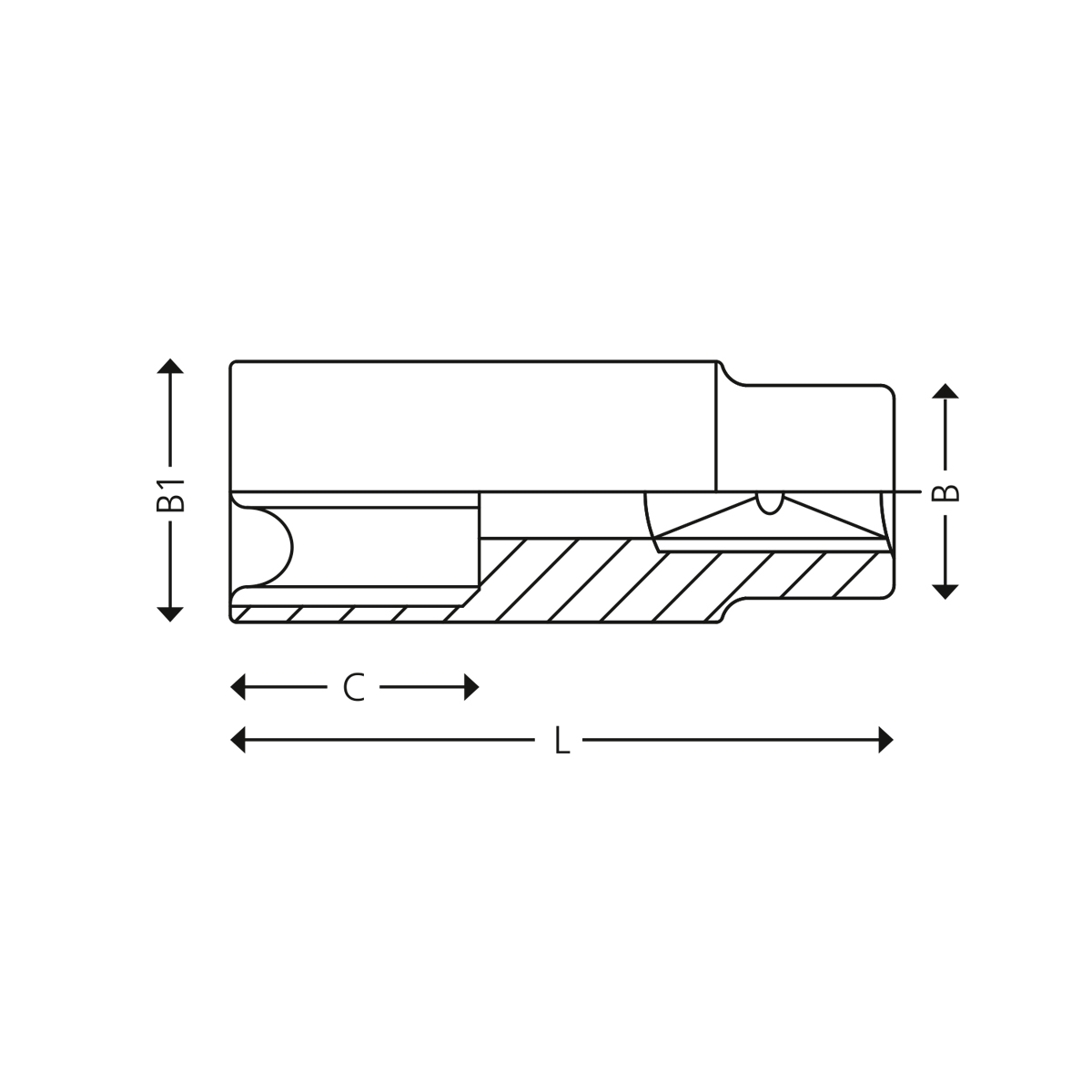

| Size mm | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 10 | 5012-5010 | 22,0 | 15,0 | 12 | 77 | 96 |
| 11 | 5012-5011 | 22,0 | 16,3 | 12 | 77 | 101 |
| 12 | 5012-5012 | 22,0 | 17,6 | 12 | 77 | 107 |
| 13 | 5012-5013 | 22,0 | 18,8 | 12 | 77 | 109 |
| 14 | 5012-5014 | 22,0 | 20,4 | 15 | 77 | 112 |
| 15 | 5012-5015 | 20,7 | 21,6 | 15 | 77 | 109 |
| 16 | 5012-5016 | 21,5 | 22,9 | 15 | 77 | 112 |
| 17 | 5012-5017 | 22,0 | 24,0 | 15 | 77 | 133 |
| 18 | 5012-5018 | 23,0 | 25,4 | 18 | 77 | 179 |
| 19 | 5012-5019 | 23,0 | 26,0 | 18 | 77 | 157 |
| 20 | 5012-5020 | 24,0 | 27,9 | 18 | 77 | 210 |
| 21 | 5012-5021 | 25,0 | 28,0 | 18 | 77 | 222 |
| 22 | 5012-5022 | 26,0 | 30,0 | 21 | 77 | 227 |
| 23 | 5012-5023 | 27,0 | 31,6 | 21 | 77 | 273 |
| 24 | 5012-5024 | 28,0 | 32,0 | 24 | 77 | 255 |
| 25 | 5012-5025 | 30,0 | 34,0 | 24 | 77 | 315 |
| 26 | 5012-5026 | 30,0 | 35,4 | 24 | 77 | 310 |
| 27 | 5012-5027 | 30,0 | 36,0 | 27 | 77 | 352 |
| 28 | 5012-5028 | 32,0 | 37,9 | 27 | 77 | 351 |
| 29 | 5012-5029 | 32,0 | 38,0 | 27 | 77 | 331 |
| 30 | 5012-5030 | 34,0 | 40,0 | 30 | 77 | 373 |
| 31 | 5012-5031 | 36,0 | 41,0 | 32 | 77 | 390 |
| 32 | 5012-5032 | 36,0 | 42,0 | 33 | 77 | 420 |
