1/2” 12-point inch sockets
ANSI B107.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.

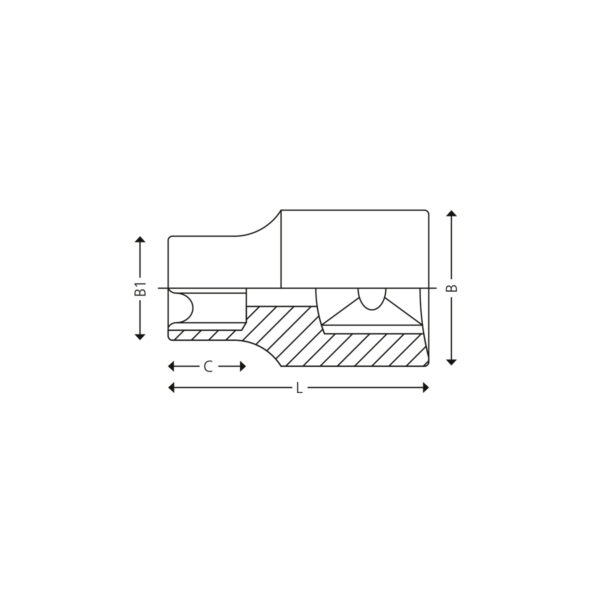

| Size ” | Item no. | B mm | B1 mm | C mm | L mm | Weight (g) |
|---|---|---|---|---|---|---|
| 3/8” | 5012-2112 | 21,8 | 15,0 | 12 | 38 | 49 |
| 13/32 | 5012-2113 | 21,8 | 15,7 | 12 | 38 | 50 |
| 7/16 | 5012-2114 | 21,8 | 16,3 | 12 | 38 | 50 |
| 15/32 | 5012-2115 | 21,8 | 17,6 | 12 | 38 | 50 |
| 1/2 | 5012-2116 | 21,8 | 18,8 | 12 | 38 | 51 |
| 9/16 | 5012-2118 | 21,8 | 20,4 | 12 | 38 | 53 |
| 19/32 | 5012-2119 | 20,7 | 21,6 | 12 | 38 | 54 |
| 5/8 | 5012-2120 | 21,5 | 22,9 | 12 | 38 | 61 |
| 21/32 | 5012-2121 | 22,0 | 24,0 | 12 | 38 | 64 |
| 11/16 | 5012-2122 | 22,0 | 24,0 | 12 | 38 | 68 |
| 3/4 | 5012-2124 | 23,0 | 26,0 | 14 | 38 | 73 |
| 25/32 | 5012-2125 | 24,0 | 27,9 | 14 | 38 | 86 |
| 13/16 | 5012-2126 | 25,0 | 28,0 | 14 | 38 | 82 |
| 7/8 | 5012-2128 | 26,0 | 30,0 | 14 | 38 | 106 |
| 15/16 | 5012-2130 | 28,0 | 32,0 | 16 | 38 | 121 |
| 1 | 5012-2132 | 30,0 | 34,0 | 16 | 38 | 150 |
| 1 1/16 | 5012-2134 | 30,0 | 36,0 | 18 | 38 | 168 |
| 1 1/8 | 5012-2136 | 32,0 | 38,0 | 20 | 38 | 205 |
| 1 3/16 | 5012-2138 | 34,0 | 40,0 | 22 | 38 | 225 |
| 1 1/4 | 5012-2140 | 36,0 | 42,0 | 22 | 38 | 225 |
